Microtomes

Click to enlarge

Click on the image to enlarge to full size.

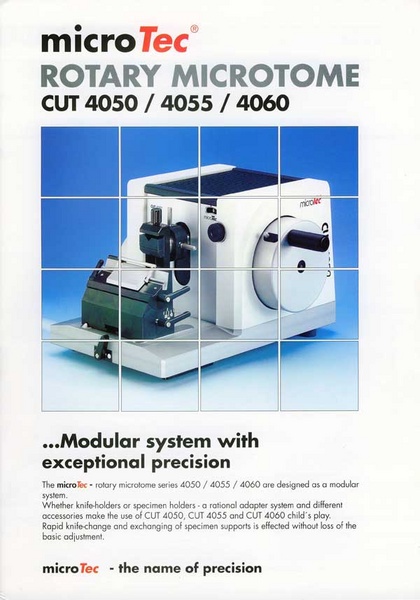

This range of rotary microtomes is manufactured in Germany. The blade holder includes a stainless steel guard rail which is manually raised to cover the low profile blade. The handwheel can be locked in any position and the chuck can either be a fixed type or fully orientatable. The spring loaded 'rapid clamp' which holds normal cassettes is not shown in the image above but is the usual type with the vertical lever. The manual advance handwheel is available either on the left side of the instrument or facing forward on the front left corner.

SPECIFICATIONS

  • Section thickness adjustment from 0,5 µm to 60 µm
  • Vertical stroke: 70 mm
  • Horizontal stroke: 40 mm
  • Retraction 80 µm on return stroke.
  • Autotrim modes in 3 steps 10, 20, 30 µm
  • Integrated section counter with LCD read out, resettable
Catalogue Number: See table below
OrderingCat.No.
Microtome with coarse advance on the side
Microtome with coarse advance at the front
Cut 4060
Cut 4060F
